Vertical Solar PV Poles | Solway Square Module Vertical Solar Pole – Higher Efficiency, Fully Customizable

The solar lighting industry is undergoing a major transformation. Traditional flat-panel solar poles are gradually giving way to more advanced, efficient, and aesthetically pleasing designs. One of the most innovative developments is the Solway vertical solar PV pole, which uses larger square cross-section modules. With its larger square modules and 360° vertical wraparound design, it captures sunlight from all directions, ensuring continuous energy input throughout the day. This product is available in 200W, 240W, and 300W configurations, with telescopic heights ranging from 10 to 14 meters, representing the future direction of sustainable off-grid lighting and power solutions. Solway supports full customization, providing one-stop off-grid lighting solutions for various engineering scenarios.

What is a Vertical Solar PV Pole?

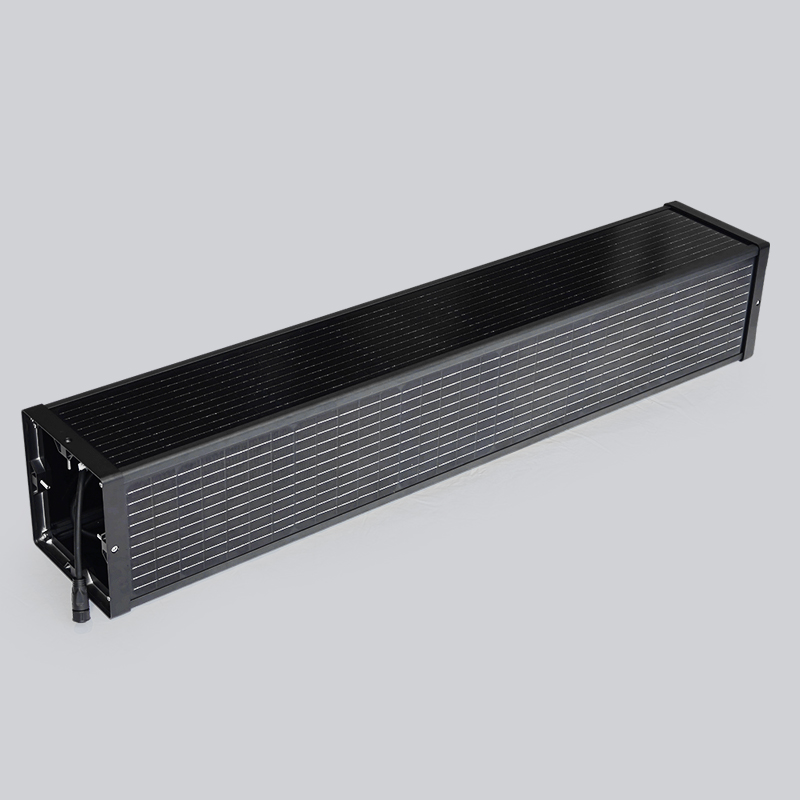

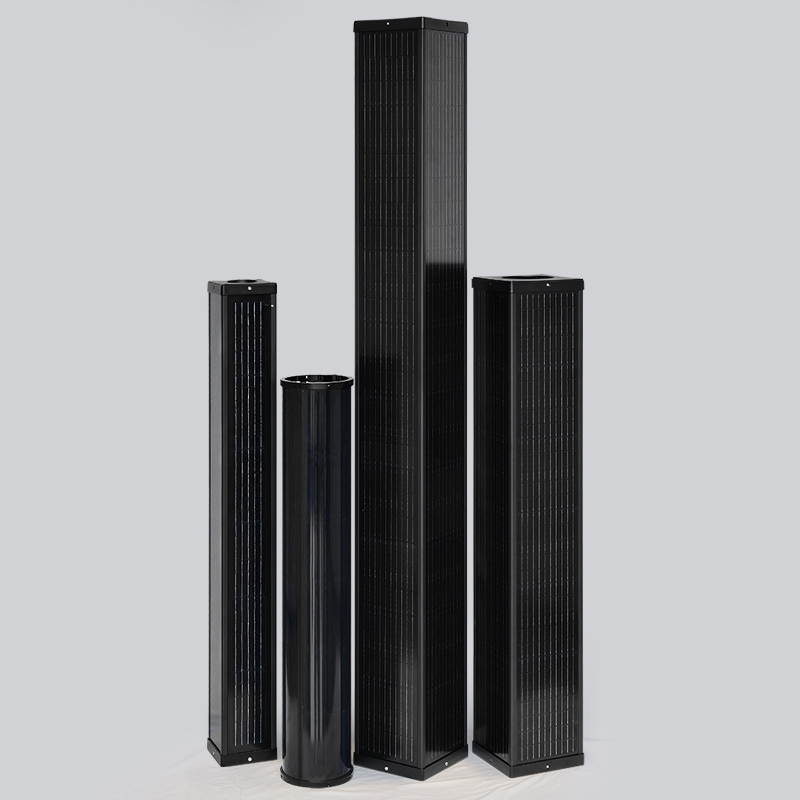

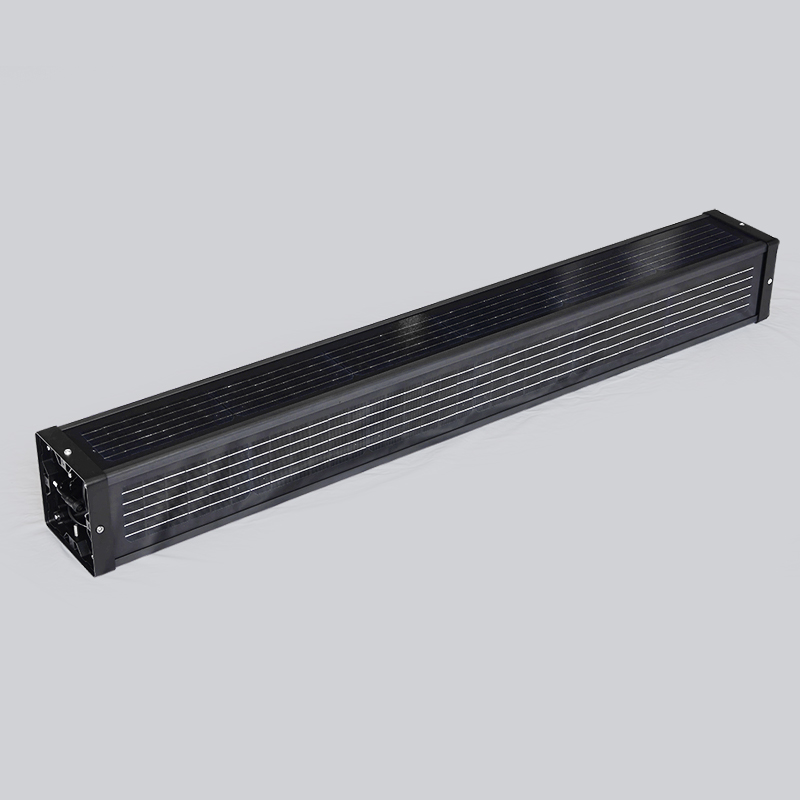

A vertical solar PV pole is an advanced solar lighting structure that integrates photovoltaic modules directly into the pole body, rather than as separate flat panels mounted on top. A significant feature of the new generation of poles is the larger square module design, maximizing the surface area for solar energy capture. This technology, known as "SolarWrap," utilizes square or polygonal solar modules arranged vertically at 360° around the light pole.

Unlike traditional flat-plate solar panels—which require precise orientation to the sun and are only truly efficient during peak sunlight hours (typically 2-3 hours per day)—vertical solar light poles equipped with square modules continuously capture both direct and diffused sunlight from sunrise to sunset.

Advantages of 360° Omnidirectional Absorption and Larger Square Modules

The core advantage of this type of system lies in its larger square solar modules and their 360° vertical orientation. This innovative design fundamentally changes the way solar energy is harvested:

1. Superior Energy Capture Capacity: At any time of day, at least half of the vertical module surface faces the sun. In the early morning and late afternoon, when the output of traditional flat-plate modules drops by 70-80%, vertical modules maintain 60-70% efficiency due to their ability to capture low-angle light.

2. Higher Daily Power Generation: The cylindrical or square geometry enables passive solar tracking, eliminating the need for expensive and faulty mechanical tracking systems. The report shows that these 360° systems generate 25-35% more daily power compared to fixed-tilt flat panel modules of the same rated power.

3. Self-cleaning design: The vertical, larger square surface has a natural self-cleaning ability. Rainwater easily washes away dust, dirt, and bird droppings—problems that plague flat panel modules. This "zero-maintenance" feature ensures continuous high performance throughout the year, eliminating the need for frequent, costly cleaning.

4. Excellent wind resistance: Compared to bulky flat panels tilted at 30-45 degrees, the aerodynamic vertical design significantly reduces wind resistance. These light poles are engineered to withstand hurricane-force winds (160 km/h), making them ideal for coastal areas, highways, and open rural landscapes.

Flexible power configurations: 200W, 240W, and 300W

A major advantage of modern vertical solar PV light poles is their modular scalability. The system offers various power outputs to suit different application scenarios, with 200W, 240W, and 300W being the most common configurations.

■ 200W Configuration: Suitable for low-power applications such as residential walkway lighting, patio lighting, security cameras, and small parking lots. This module offers reliable off-grid power at a competitive entry-level price.

■  240W Configuration: The ideal "golden power point" for municipal road lighting, rural road lighting, and traffic sign lighting. The 240W configuration offers a balanced energy efficiency ratio, capable of driving high-brightness LED luminaires (10,000-15,000 lumens luminous flux) and providing up to 10 days of battery life even in cloudy conditions.

■ 300W Configuration: A high-end option for major infrastructure projects, including major traffic arteries, large parking lots, industrial parks, and smart city communication nodes. This high-power system can support multiple luminaires, floodlights, or auxiliary devices such as Wi-Fi hotspots and environmental sensors.

Telescopic and Fixed Height: From 10 meters to 14 meters.

 The structural height of the light pole directly affects the lighting coverage. Advanced vertical solar photovoltaic light poles can be manufactured in significant heights:

▲ 10-meter poles: Suitable for illuminating wide roads, large parking lots, and commercial areas. Equipped with 240W or 300W systems, 10-meter poles project a wide, uniform beam with minimal dark areas.

▲ 14-meter poles: Designed specifically for high-pole applications, suitable for scenarios requiring maximum coverage, such as large highway interchanges, large industrial areas, and ports. These high poles can be designed as telescopic vertical solar light poles, using a sleeve mechanism to raise and lower the superstructure, facilitating maintenance of the solar modules and lights without the need for heavy lifting equipment.

Structural Advantages: Materials and Engineering

The effectiveness of a solar light pole depends on its durability and ability to withstand environmental stresses. High-quality vertical solar photovoltaic light poles are manufactured using robust materials:

Galvanized steel (Q235/Q345): The most common material, offering superior strength and a service life of 15-25 years. Hot-dip galvanizing (coating thickness 80-100μm) ensures corrosion resistance even in harsh industrial or coastal environments.

▲  Aluminum Alloy: With a service life of 20-30 years, it possesses natural corrosion resistance. Lighter than steel, it simplifies logistics and installation, making it particularly suitable for aesthetically pleasing urban environments.

▲  Fiberglass: A specialized yet efficient alternative for corrosive environments, it is maintenance-free and non-conductive.

▲ These light poles are designed to meet or exceed stringent wind load standards, such as EN 40-3-1 and ASCE 7. Standard models typically have a wall thickness between 2.5mm and 4.0mm, with thicker specifications used for models with higher installation heights.

Global Market Trends

The solar light pole market is expanding rapidly. Global market research shows that the industry is on a significant growth trajectory, with revenue projected to reach billions of dollars by 2031. This growth is driven by investments in smart city infrastructure, the global energy transition, and the demand for off-grid solutions for remote areas.

Solway's Vertical Solar PV Poles achieve continuous energy input around the clock and extremely low operation and maintenance costs through larger square modules and a 360° vertical surround design. Solway has completed projects in over 120 countries and 350 cities worldwide, serving more than 350 clients across various scenarios including government municipal projects, real estate projects, industrial parks, and parking lots.

Contact Solway now to obtain your customized vertical solar PV pole solution.
